01 — Tools

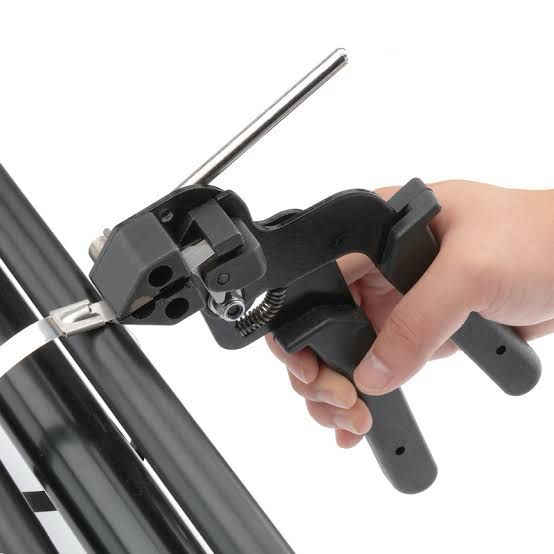

Stainless Steel Cable Tie Tightening Tool
Backed by over 20 years of experience in this domain, we provide a qualitative range of cable tie tools made from high-grade materials with high strength and excellent performance, widely applied across cabling applications for installing stainless steel cable ties.
| Product code | UNI-CTT-1 |
| Construction | Heavy-duty chrome-plated & PVDF coated |
| Module | Semi-auto tighten & cut-off |
| Compatibility | All Ball Lock (incl. Double Loop) & Ladder type ties |
| Design | Lightweight, reduced installer fatigue |
| Locking | Designed for locking all Stainless Steel Ball Lock type and Ladder type Cable Ties |
| Cut-off action | After the tie is tightened, the side-mounted round steel bar pushes down to cleanly cut off the remaining tie |
| Ergonomics | Lightweight design that reduces overall installer fatigue |
| Module | Semi-auto module enables tightening and cut-out of the rest cable tie in one action |
| Build | Heavy-duty, two-stage cable tie tool for installing stainless steel cable ties |
| Corrosion protection | Available in heavy-duty chrome-plated and PVDF coated construction for maximum corrosion resistance |
| Tie compatibility | Works with all sizes of Ball Lock type (including Double Loop style) as well as Ladder type stainless steel cable ties |
02 — Banding & ID

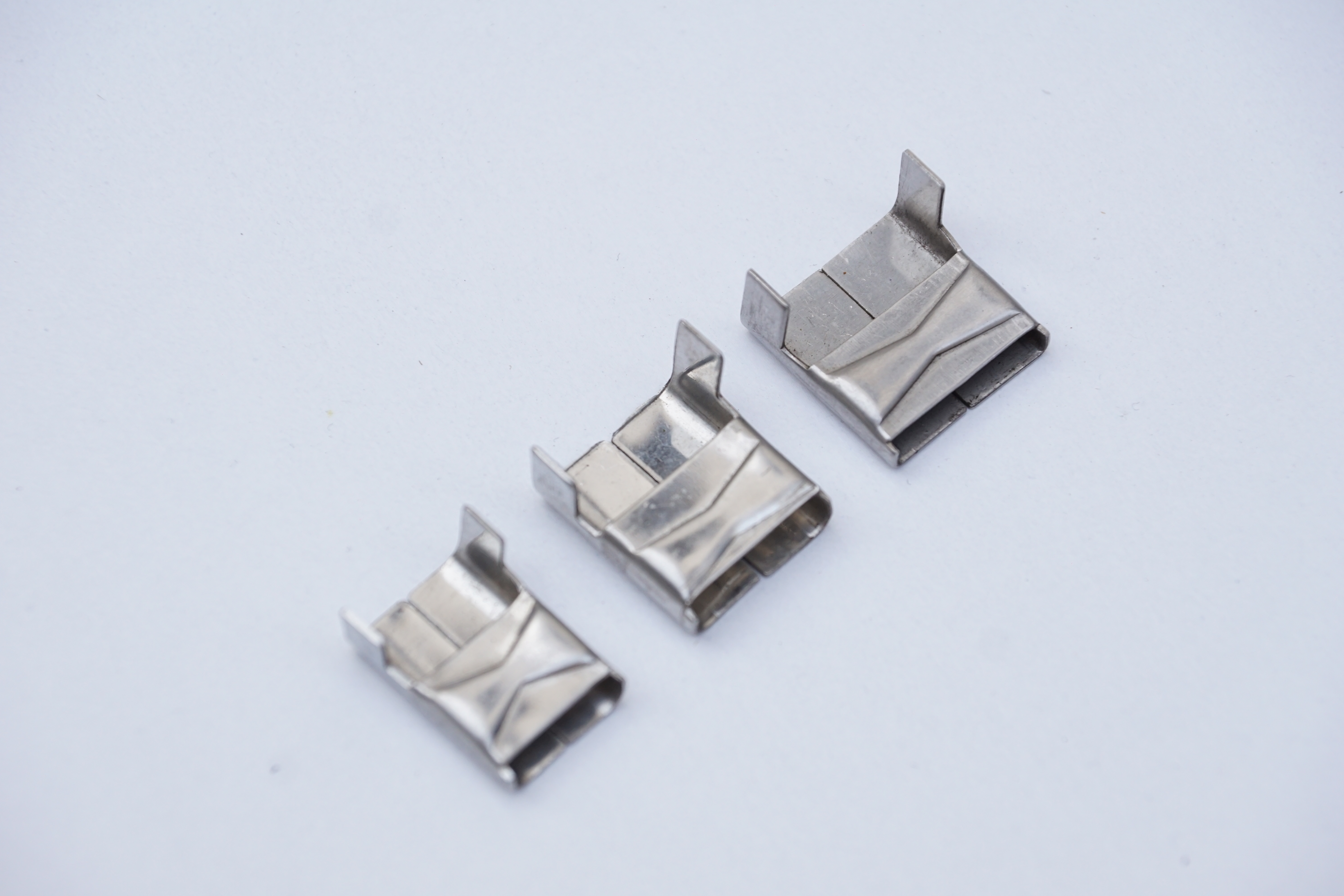

Stainless Steel Bands, Markers & Tags
Stainless Steel 201 banding is ideally suited for fixing signs, air-conditioning systems, large ducts and pipes — coated banding is available for harsh environments. A comprehensive marking system of tags, alphabets, numbers and special characters provides effortless, permanent identification of cable accessories or ducting systems.
| Band widths | 6.35 / 9.53 / 12.7 / 15.88 / 19.01 mm |
| Band thickness | 0.38 mm |
| Band material | Stainless Steel 201 |
| Tag & marker grade | SS 316 or SS 304 |
| Marking options | Tags, alphabets A–Z, numbers 0–9, special characters |
| Description | Product Code | Dimensions W × L (mm) |
|---|---|---|
| Tag | T-3463 | 34 × 63 |
| Tag | T-1951 | 19 × 51 |
| Tag | T-1989 | 19 × 89 |
| Tag | T-1992 | 19 × 92 |
| Tag | T-892 | 8 × 92 |
| Tag | T-8133 | 8 × 133 |
| Tag | T-8166 | 8 × 166 |
| Alphabets | A...Z | 8 × 9 |
| Numbers | 0...9 | 8 × 9 |
| Special Characters | +, -, ~, #, / etc. | 8 × 9 |
Tags are available in Stainless Steel Grade 316 & 304. Customized sizes are available in markers & tags. We can also manufacture tags with special characters beyond the standard set, per specific drawing.
03 — Releasable

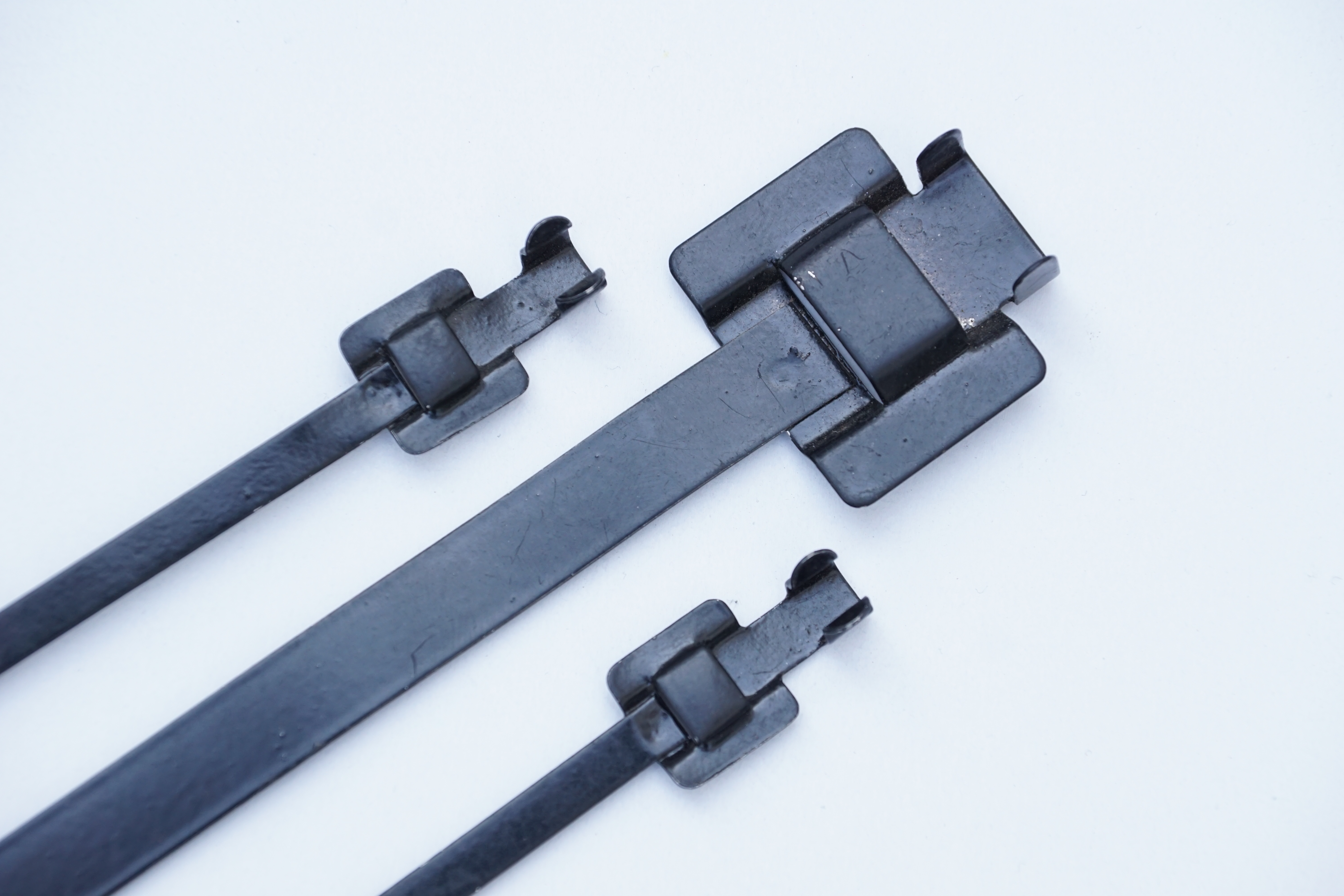

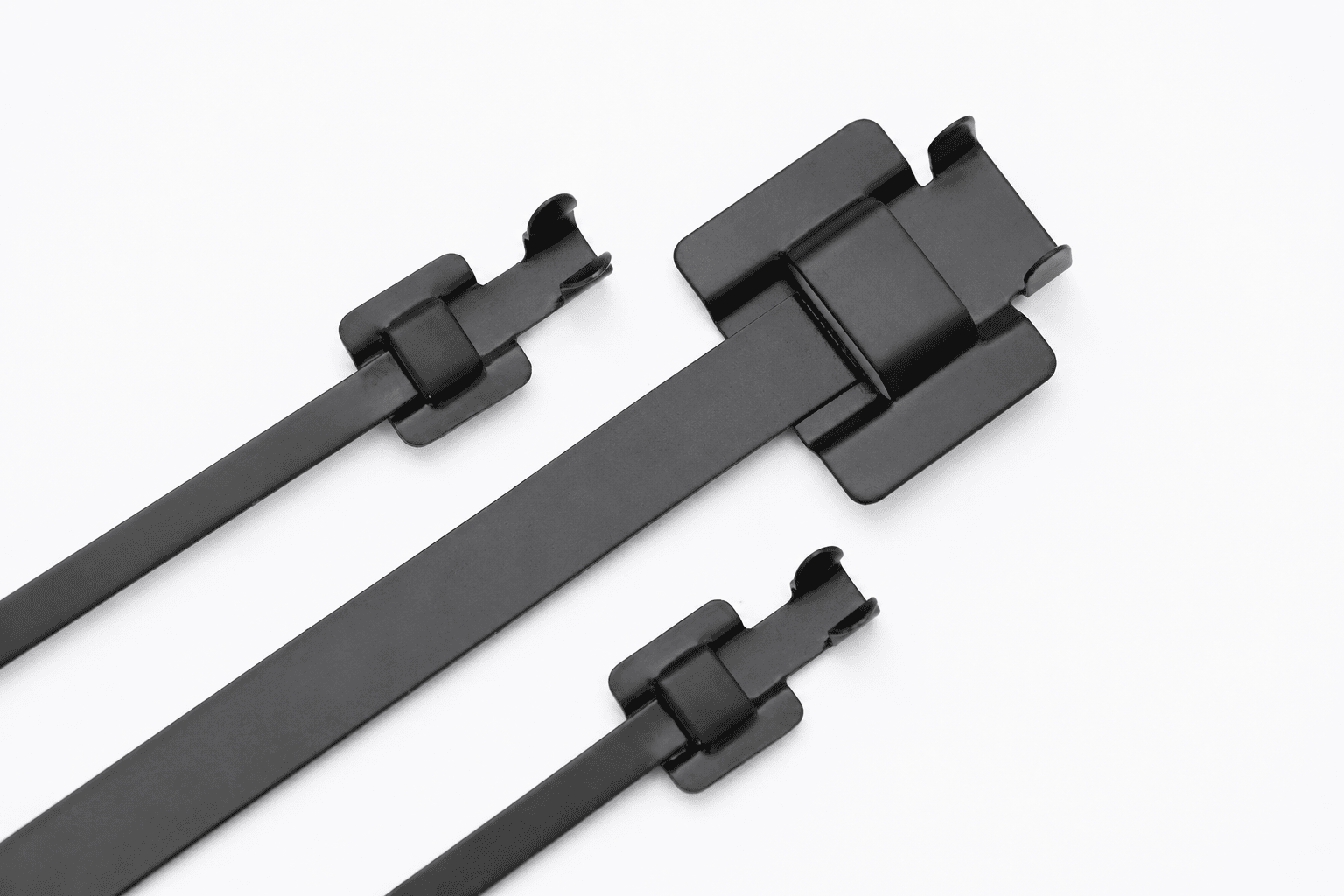

Stainless Steel Releasable Cable Ties
A unique buckle design enables fast, easy installation with a true fasten–unfasten–refasten cycle, giving greater flexibility on installations that need periodic maintenance access. Coated ties have better weathering properties with excellent resistance to corrosion, radiation and abrasion.
| Widths | 6.3 mm / 9.5 mm |
| Material | SS 304 & SS 316 |
| Min. loop tensile | 6.3 mm — 400 lbs · 9.5 mm — 500 lbs |
| Temp. — uncoated | –40°C to +325°C |
| Temp. — coated | –60°C to +170°C |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 63RLU-316-150 | 6.3 | 150 | 35 |
| 63RLU-316-230 | 6.3 | 230 | 60 |
| 63RLU-316-250 | 6.3 | 250 | 75 |
| 63RLU-316-300 | 6.3 | 300 | 85 |
| 63RLU-316-330 | 6.3 | 330 | 95 |
| 63RLU-316-400 | 6.3 | 400 | 115 |
| 63RLU-316-450 | 6.3 | 450 | 130 |
| 63RLU-316-520 | 6.3 | 520 | 155 |
| 63RLU-316-630 | 6.3 | 630 | 190 |
| 63RLU-316-760 | 6.3 | 760 | 230 |
| 63RLU-316-800 | 6.3 | 800 | 240 |
| 63RLU-316-850 | 6.3 | 850 | 260 |
| 63RLU-316-1000 | 6.3 | 1000 | 300 |
| 95RLU-316-150 | 9.5 | 150 | 35 |
| 95RLU-316-230 | 9.5 | 230 | 60 |
| 95RLU-316-250 | 9.5 | 250 | 75 |
| 95RLU-316-300 | 9.5 | 300 | 85 |
| 95RLU-316-330 | 9.5 | 330 | 95 |
| 95RLU-316-400 | 9.5 | 400 | 115 |
| 95RLU-316-450 | 9.5 | 450 | 130 |
| 95RLU-316-520 | 9.5 | 520 | 155 |
| 95RLU-316-630 | 9.5 | 630 | 190 |
| 95RLU-316-760 | 9.5 | 760 | 230 |
| 95RLU-316-800 | 9.5 | 800 | 240 |
| 95RLU-316-850 | 9.5 | 850 | 260 |
| 95RLC-316-1000 | 9.5 | 1000 | 300 |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 63RLC-316-150 | 6.3 | 150 | 35 |
| 63RLC-316-230 | 6.3 | 230 | 60 |
| 63RLC-316-250 | 6.3 | 250 | 75 |
| 63RLC-316-300 | 6.3 | 300 | 85 |
| 63RLC-316-330 | 6.3 | 330 | 95 |
| 63RLC-316-400 | 6.3 | 400 | 115 |
| 63RLC-316-450 | 6.3 | 450 | 130 |
| 63RLC-316-520 | 6.3 | 520 | 155 |
| 63RLC-316-630 | 6.3 | 630 | 190 |
| 63RLC-316-760 | 6.3 | 760 | 230 |
| 63RLC-316-800 | 6.3 | 800 | 240 |
| 63RLC-316-850 | 6.3 | 850 | 260 |
| 63RLC-316-1000 | 6.3 | 1000 | 300 |
| 95RLC-316-150 | 9.5 | 150 | 35 |
| 95RLC-316-230 | 9.5 | 230 | 60 |
| 95RLC-316-250 | 9.5 | 250 | 75 |
| 95RLC-316-300 | 9.5 | 300 | 85 |
| 95RLC-316-330 | 9.5 | 330 | 95 |
| 95RLC-316-400 | 9.5 | 400 | 115 |
| 95RLC-316-450 | 9.5 | 450 | 130 |
| 95RLC-316-520 | 9.5 | 520 | 155 |
| 95RLC-316-630 | 9.5 | 630 | 190 |
| 95RLC-316-760 | 9.5 | 760 | 230 |
| 95RLC-316-800 | 9.5 | 800 | 240 |
| 95RLC-316-850 | 9.5 | 850 | 260 |
| 95RLC-316-1000 | 9.5 | 1000 | 300 |
Intermediate lengths are available on demand for special requirements. Mentioned products are also available in material SS 304 — use 304 instead of 316 in the product code, e.g. 63RLU-316-150 shall be 63RLU-304-150.
04 — Ladder Type

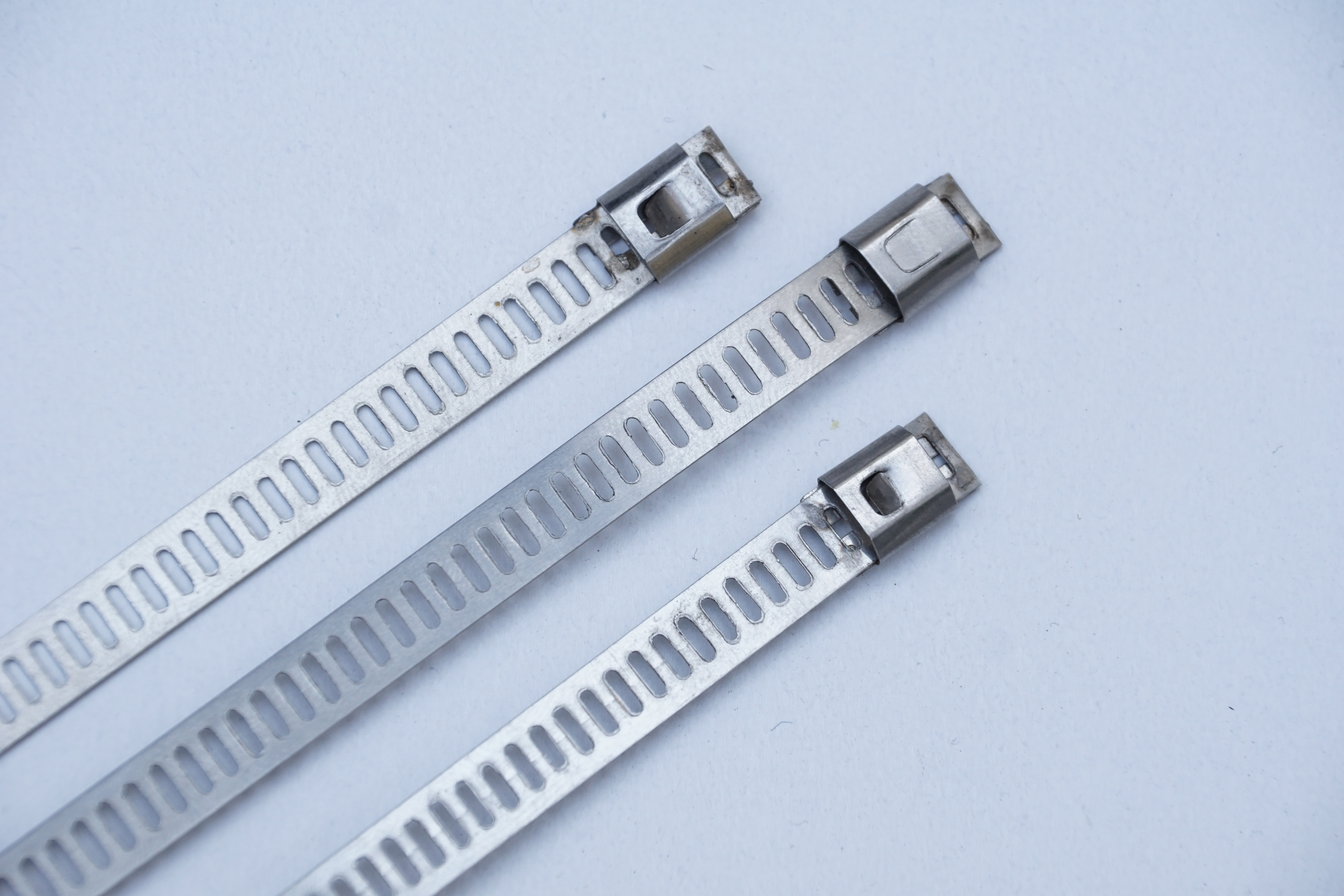

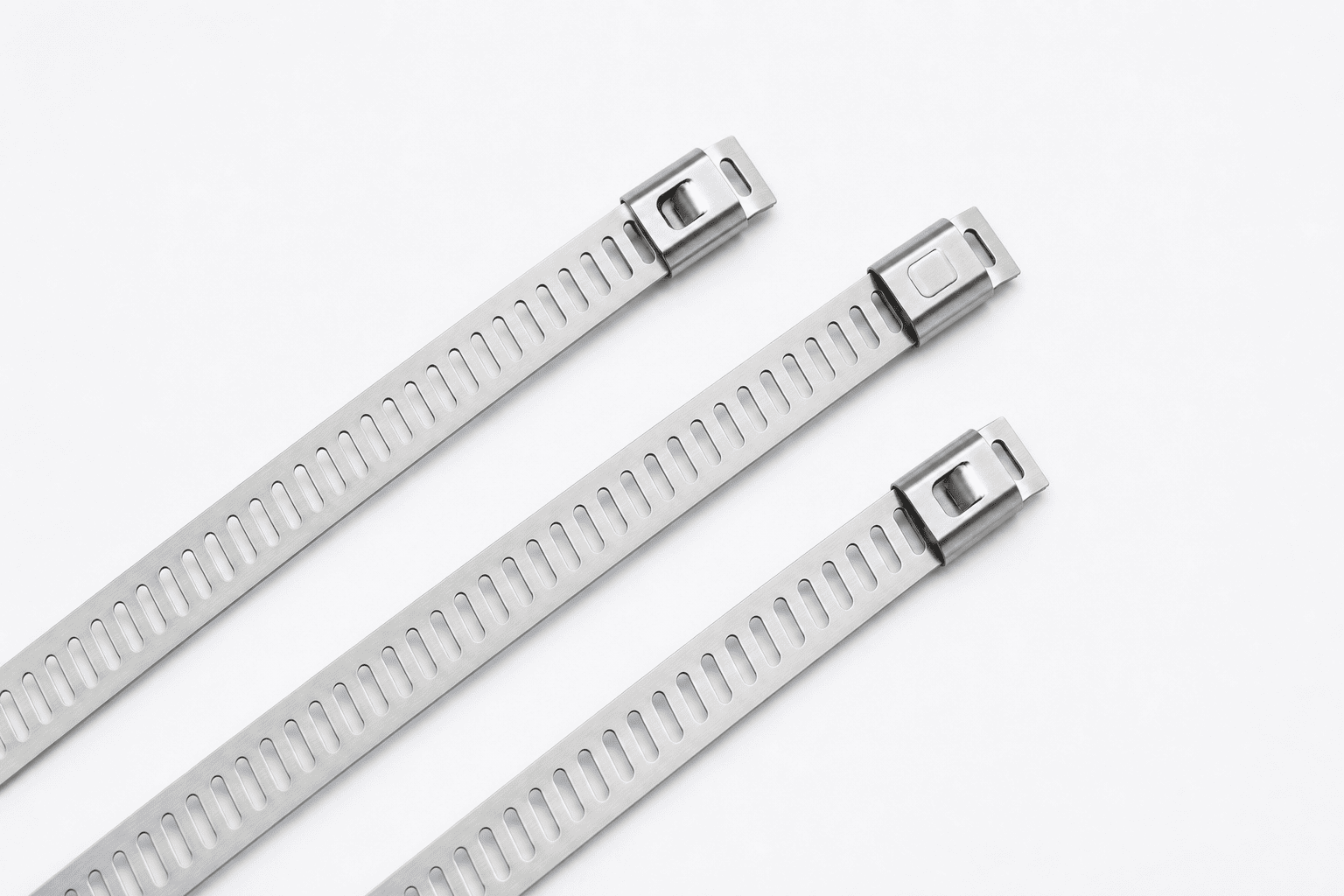

Ladder Type Cable Tie
Uncoated · Mill FinishAs strong as Ball Lock type cable ties, the Ladder type's unique locking strip design self-locks without any crimping tool, for fast and easy application. Available in Grade 316 & 304, coated or uncoated, in 7 mm and 12 mm widths across various lengths.
| Type | Ladder un-coated |
| Sizes | 7 mm / 12 mm |
| Grade | SS316 or SS304 |
| Min. loop tensile | 7 mm — 100 lbs · 12 mm — 200 lbs |
| Temp. — uncoated | –80°C to +538°C |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 7LTU-316-100 | 7 | 100 | 20 |
| 7LTU-316-150 | 7 | 150 | 35 |
| 7LTU-316-200 | 7 | 200 | 50 |
| 7LTU-316-250 | 7 | 250 | 70 |
| 7LTU-316-300 | 7 | 300 | 85 |
| 7LTU-316-360 | 7 | 360 | 100 |
| 7LTU-316-450 | 7 | 450 | 130 |
| 7LTU-316-550 | 7 | 550 | 165 |
| 7LTU-316-610 | 7 | 610 | 180 |
| 7LTU-316-680 | 7 | 680 | 200 |
| 7LTU-316-840 | 7 | 840 | 255 |
| 7LTU-316-900 | 7 | 900 | 275 |
| 7LTU-316-1000 | 7 | 1000 | 305 |
| 7LTU-316-1200 | 7 | 1200 | 370 |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 12LTU-316-100 | 12 | 100 | 20 |
| 12LTU-316-150 | 12 | 150 | 35 |
| 12LTU-316-200 | 12 | 200 | 50 |
| 12LTU-316-250 | 12 | 250 | 70 |
| 12LTU-316-300 | 12 | 300 | 85 |
| 12LTU-316-360 | 12 | 360 | 100 |
| 12LTU-316-450 | 12 | 450 | 130 |
| 12LTU-316-550 | 12 | 550 | 165 |
| 12LTU-316-610 | 12 | 610 | 180 |
| 12LTU-316-680 | 12 | 680 | 200 |
| 12LTU-316-840 | 12 | 840 | 255 |
| 12LTU-316-900 | 12 | 900 | 275 |
Intermediate lengths are available on demand for special requirements. Mentioned products are also available in material SS 304 — use 304 instead of 316 in the product code, e.g. 7LTU-316-100 shall be 7LTU-304-100.
05 — Ladder Type

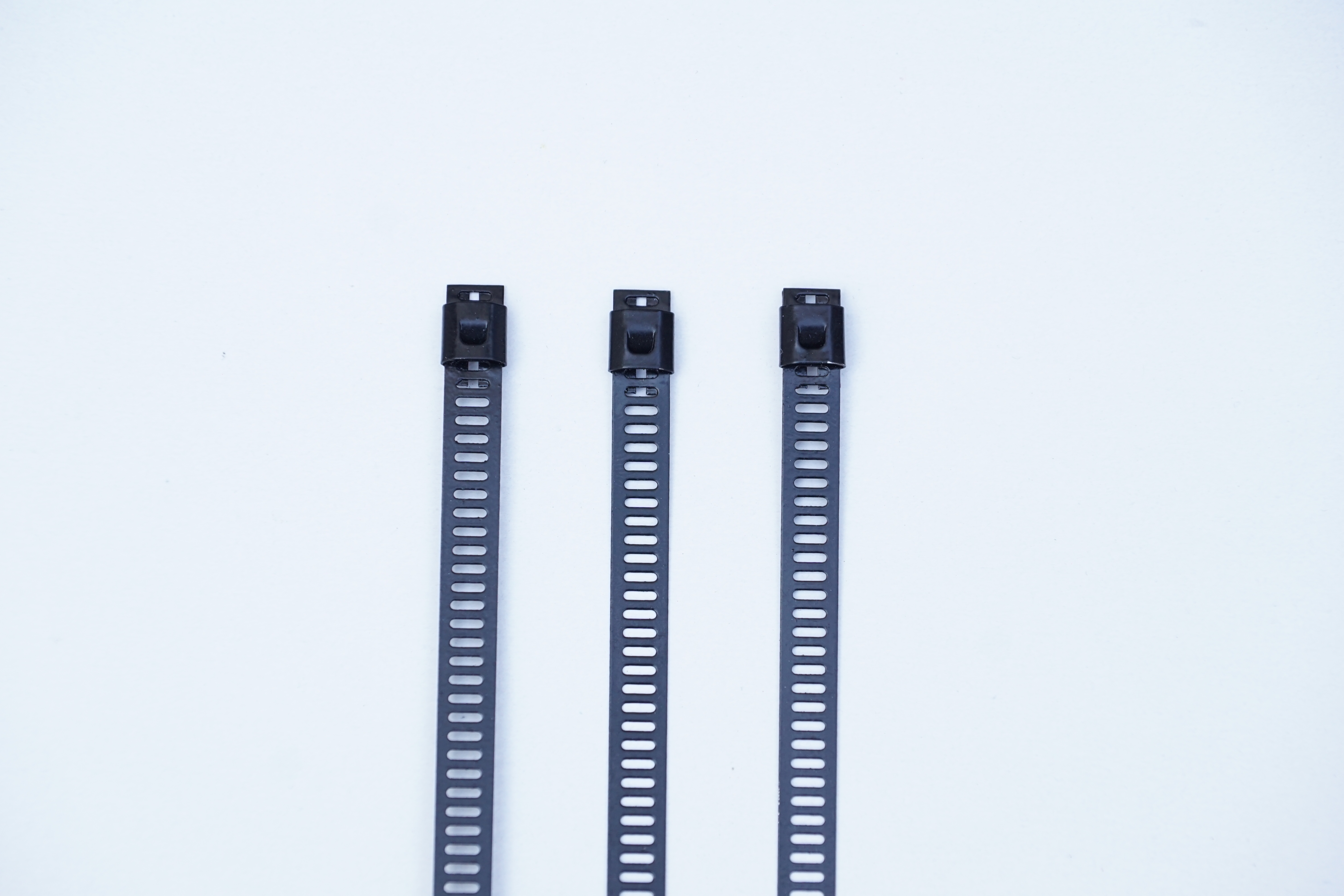

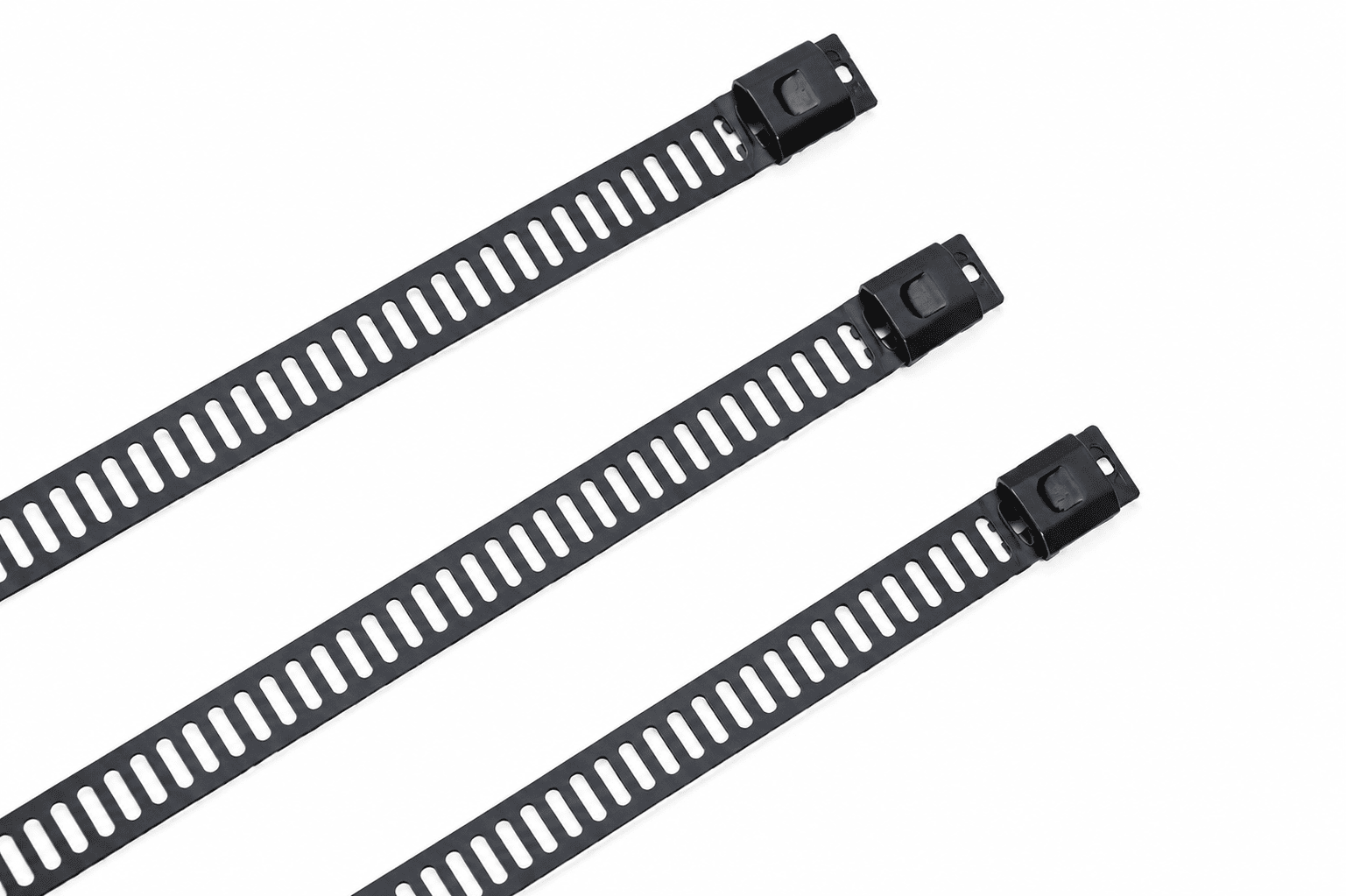

Ladder Type Cable Tie
Coated · Wide Color RangeSame self-locking ladder-rung profile, fully coated for added resistance to corrosion, chemicals and weathering, available in a wide choice of colors. Available in Grade 316 & 304, in 7 mm and 12 mm widths across various lengths.
| Type | Ladder coated |
| Sizes | 7 mm / 12 mm |
| Grade | SS316 or SS304 |
| Min. loop tensile | 7 mm — 100 lbs · 12 mm — 200 lbs |
| Temp. — coated | –80°C to +150°C |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 7LTC-316-100 | 7 | 100 | 20 |
| 7LTC-316-150 | 7 | 150 | 35 |
| 7LTC-316-200 | 7 | 200 | 50 |
| 7LTC-316-250 | 7 | 250 | 70 |
| 7LTC-316-300 | 7 | 300 | 85 |
| 7LTC-316-360 | 7 | 360 | 100 |
| 7LTC-316-450 | 7 | 450 | 130 |
| 7LTC-316-550 | 7 | 550 | 165 |
| 7LTC-316-610 | 7 | 610 | 180 |
| 7LTC-316-680 | 7 | 680 | 200 |
| 7LTC-316-840 | 7 | 840 | 255 |
| 7LTC-316-900 | 7 | 900 | 275 |
| 7LTC-316-1000 | 7 | 1000 | 305 |
| 7LTC-316-1200 | 7 | 1200 | 370 |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 12LTC-316-100 | 12 | 100 | 20 |
| 12LTC-316-150 | 12 | 150 | 35 |
| 12LTC-316-200 | 12 | 200 | 50 |
| 12LTC-316-250 | 12 | 250 | 70 |
| 12LTC-316-300 | 12 | 300 | 85 |
| 12LTC-316-360 | 12 | 360 | 100 |
| 12LTC-316-450 | 12 | 450 | 130 |
| 12LTC-316-550 | 12 | 550 | 165 |
| 12LTC-316-610 | 12 | 610 | 180 |
| 12LTC-316-680 | 12 | 680 | 200 |
| 12LTC-316-840 | 12 | 840 | 255 |
| 12LTC-316-900 | 12 | 900 | 275 |
Intermediate lengths are available on demand for special requirements. Mentioned products are also available in material SS 304 — use 304 instead of 316 in the product code, e.g. 7LTC-316-100 shall be 7LTC-304-100.
06 — Roller Ball

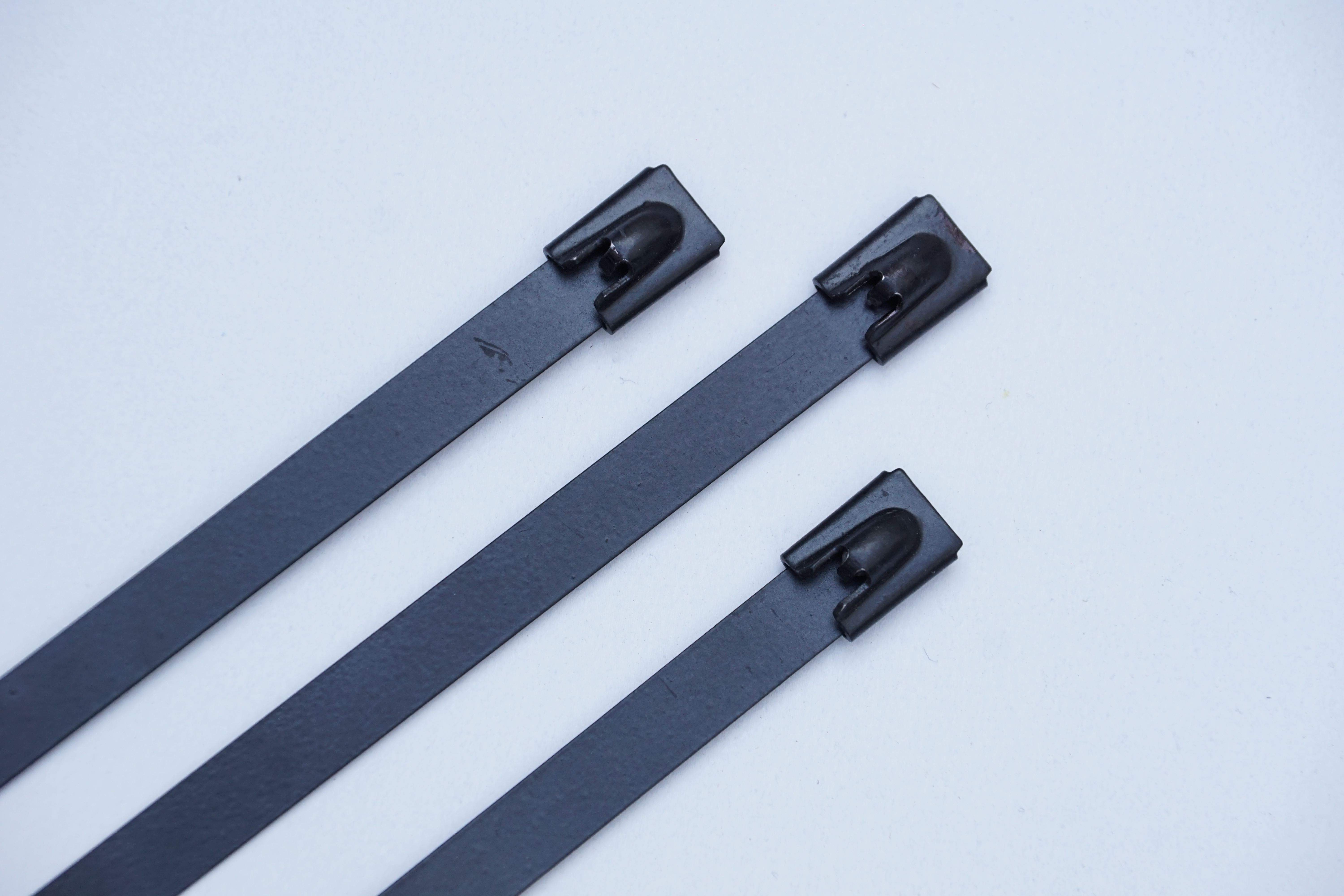

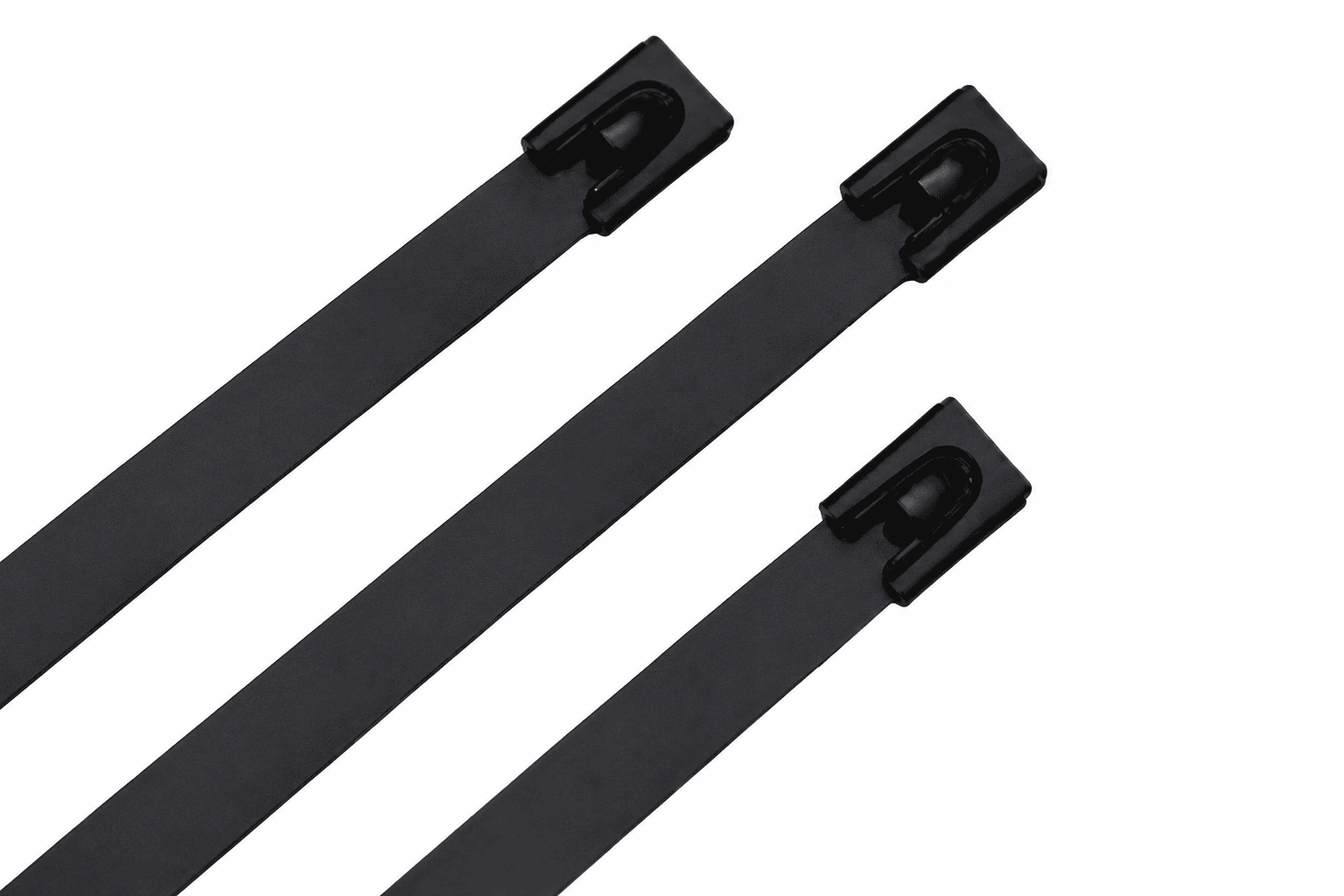

Stainless Steel Roller Ball Cable Tie
Coated · Wide Color RangeSelf-locking ball type ties provide strong, durable bundling and fastening. Low weight, high strength roller balls are designed for applications where strength, vibration, weathering and corrosion extremes are a factor — more efficient and reliable than conventional fasteners, with quick and easy installation.
| Type | Roller Ball Coated |
| Sizes | 4.6 mm / 7.9 mm |
| Grade | SS316 or SS304 |
| Min. loop tensile | 4.6 mm — 110 lbs · 7.9 mm — 200 lbs |
| Temp. — coated | –80°C to +150°C |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 46RBC-316-100 | 4.6 | 100 | 20 |
| 46RBC-316-125 | 4.6 | 125 | 30 |
| 46RBC-316-150 | 4.6 | 150 | 35 |
| 46RBC-316-200 | 4.6 | 200 | 50 |
| 46RBC-316-250 | 4.6 | 250 | 70 |
| 46RBC-316-300 | 4.6 | 300 | 85 |
| 46RBC-316-360 | 4.6 | 360 | 100 |
| 46RBC-316-450 | 4.6 | 450 | 130 |
| 46RBC-316-520 | 4.6 | 520 | 155 |
| 46RBC-316-680 | 4.6 | 680 | 200 |
| 46RBC-316-840 | 4.6 | 840 | 255 |
| 46RBC-316-1000 | 4.6 | 1000 | 305 |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 79RBC-316-100 | 7.9 | 100 | 20 |
| 79RBC-316-125 | 7.9 | 125 | 30 |
| 79RBC-316-150 | 7.9 | 150 | 35 |
| 79RBC-316-200 | 7.9 | 200 | 50 |
| 79RBC-316-250 | 7.9 | 250 | 70 |
| 79RBC-316-300 | 7.9 | 300 | 85 |
| 79RBC-316-360 | 7.9 | 360 | 100 |
| 79RBC-316-450 | 7.9 | 450 | 130 |
| 79RBC-316-520 | 7.9 | 520 | 155 |
| 79RBC-316-680 | 7.9 | 680 | 200 |
| 79RBC-316-840 | 7.9 | 840 | 255 |
| 79RBC-316-1000 | 7.9 | 1000 | 305 |
* Ball Lock Type Cable Ties are also available in widths of 12 mm and 16 mm with various lengths for special requirements.
* Intermediate lengths are available on demand for special requirements.
* Mentioned products are also available in material SS 304 — use 304 instead of 316 in the product code.
07 — Roller Ball
Stainless Steel Roller Ball Cable Tie
Uncoated · Mill FinishSame low-weight, high-strength roller ball locking mechanism in mill-finish stainless steel for high-temperature environments where coatings are not suitable — more efficient and reliable than conventional fasteners, with quick and easy installation. Available in Grade 316 & 304, in 4.6 mm and 7.9 mm widths.
| Type | Roller Ball Un-coated |
| Sizes | 4.6 mm / 7.9 mm |
| Grade | SS316 or SS304 |
| Min. loop tensile | 4.6 mm — 130 lbs · 7.9 mm — 270 lbs |
| Temp. — uncoated | –80°C to +538°C |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 46RBU-316-100 | 4.6 | 100 | 20 |
| 46RBU-316-125 | 4.6 | 125 | 30 |
| 46RBU-316-150 | 4.6 | 150 | 35 |
| 46RBU-316-200 | 4.6 | 200 | 50 |
| 46RBU-316-250 | 4.6 | 250 | 70 |
| 46RBU-316-300 | 4.6 | 300 | 85 |
| 46RBU-316-360 | 4.6 | 360 | 100 |
| 46RBU-316-450 | 4.6 | 450 | 130 |
| 46RBU-316-520 | 4.6 | 520 | 155 |
| 46RBU-316-680 | 4.6 | 680 | 200 |
| 46RBU-316-840 | 4.6 | 840 | 255 |
| 46RBU-316-1000 | 4.6 | 1000 | 305 |
| Product Code | Width (mm) | Length (mm) | Max Bundle Dia. (mm) |
|---|---|---|---|
| 79RBU-316-100 | 7.9 | 100 | 20 |
| 79RBU-316-125 | 7.9 | 125 | 30 |
| 79RBU-316-150 | 7.9 | 150 | 35 |
| 79RBU-316-200 | 7.9 | 200 | 50 |
| 79RBU-316-250 | 7.9 | 250 | 70 |
| 79RBU-316-300 | 7.9 | 300 | 85 |
| 79RBU-316-360 | 7.9 | 360 | 100 |
| 79RBU-316-450 | 7.9 | 450 | 130 |
| 79RBU-316-520 | 7.9 | 520 | 155 |
| 79RBU-316-680 | 7.9 | 680 | 200 |
| 79RBU-316-840 | 7.9 | 840 | 255 |
| 79RBU-316-1000 | 7.9 | 1000 | 305 |
* Ball Lock Type Cable Ties are also available in widths of 12 mm and 16 mm with various lengths for special requirements.
* Intermediate lengths are available on demand for special requirements.
* Mentioned products are also available in material SS 304 — use 304 instead of 316 in the product code, e.g. 46RBU-316-100 shall be 46RBU-304-100.
