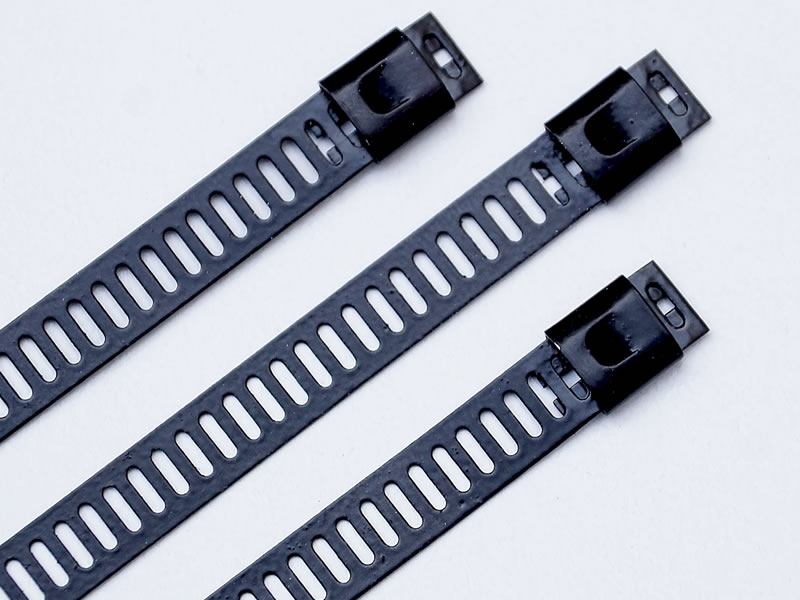

Ladder Type Stainless Steel Cable Ties are as strong as Ball Lock type Cable Ties. The unique locking design on the strip can be applied without any crimping tool. The Ladder type ties are designed for self locking fast and easy application.
Available in Grade 316 & 304 Coated or Un-coated, in 7mm and 12 mm widths and various lengths.
Normal operating range for uncoated ties is -80°C to +538°C and fully coated ties is -80°C to +150°C. It is available in wide choice of colors. Coated ties are recommended for added resistance to corrosion, chemical and weathering effects.
Minimum Loop Tensile Strength :
7 mm width - 100 lbs
12 mm width - 200 lbs
Technical Details :
Type : Ladder un-coated
Size : 7 mm OR 12 mm
Grade : SS316 or SS304
| PRODUCT CODE | WIDTH (in mm) |
LENGTH (in mm) |
MAXIMUM BUNDLE DIA. (in mm) |
|---|---|---|---|
| 7LTU-316-100 | 7 | 100 | 20 |
| 7LTU-316-150 | 7 | 150 | 35 |
| 7LTU-316-200 | 7 | 200 | 50 |
| 7LTU-316-250 | 7 | 250 | 70 |
| 7LTU-316-300 | 7 | 300 | 85 |
| 7LTU-316-360 | 7 | 360 | 100 |
| 7LTU-316-450 | 7 | 450 | 130 |
| 7LTU-316-550 | 7 | 550 | 165 |
| 7LTU-316-610 | 7 | 610 | 180 |
| 7LTU-316-680 | 7 | 680 | 200 |
| 7LTU-316-840 | 7 | 840 | 255 |
| 7LTU-316-900 | 7 | 900 | 275 |
| 7LTU-316-1000 | 7 | 1000 | 305 |
| 7LTU-316-1200 | 7 | 1200 | 370 |
| 12LTU-316-100 | 12 | 100 | 20 |
| 12LTU-316-150 | 12 | 150 | 35 |
| 12LTU-316-200 | 12 | 200 | 50 |
| 12LTU-316-250 | 12 | 250 | 70 |
| 12LTU-316-300 | 12 | 300 | 85 |
| 12LTU-316-360 | 12 | 360 | 100 |
| 12LTU-316-450 | 12 | 450 | 130 |
| 12LTU-316-550 | 12 | 550 | 165 |
| 12LTU-316-610 | 12 | 610 | 180 |
| 12LTU-316-680 | 12 | 680 | 200 |
| 12LTU-316-840 | 12 | 840 | 255 |
| 12LTU-316-900 | 12 | 900 | 275 |
Type : Ladder coated
Size : 7 mm OR 12 mm
Grade : SS316 or SS304
| PRODUCT CODE | WIDTH (in mm) |
LENGTH (in mm) |
MAXIMUM BUNDLE DIA. (in mm) |
|---|---|---|---|
| 7LTC-316-100 | 7 | 100 | 20 |
| 7LTC-316-150 | 7 | 150 | 35 |
| 7LTC-316-200 | 7 | 200 | 50 |
| 7LTC-316-250 | 7 | 250 | 70 |
| 7LTC-316-300 | 7 | 300 | 85 |
| 7LTC-316-360 | 7 | 360 | 100 |
| 7LTC-316-450 | 7 | 450 | 130 |
| 7LTC-316-550 | 7 | 550 | 165 |
| 7LTC-316-610 | 7 | 610 | 180 |
| 7LTC-316-680 | 7 | 680 | 200 |
| 7LTC-316-840 | 7 | 840 | 255 |
| 7LTC-316-900 | 7 | 900 | 275 |
| 7LTC-316-1000 | 7 | 1000 | 305 |
| 7LTC-316-1200 | 7 | 1200 | 370 |
| 12LTC-316-100 | 12 | 100 | 20 |
| 12LTC-316-150 | 12 | 150 | 35 |
| 12LTC-316-200 | 12 | 200 | 50 |
| 12LTC-316-250 | 12 | 250 | 70 |
| 12LTC-316-300 | 12 | 300 | 85 |
| 12LTC-316-360 | 12 | 360 | 100 |
| 12LTC-316-450 | 12 | 450 | 130 |
| 12LTC-316-550 | 12 | 550 | 165 |
| 12LTC-316-610 | 12 | 610 | 180 |
| 12LTC-316-680 | 12 | 680 | 200 |
| 12LTC-316-840 | 12 | 840 | 255 |
| 12LTC-316-900 | 12 | 900 | 275 |
